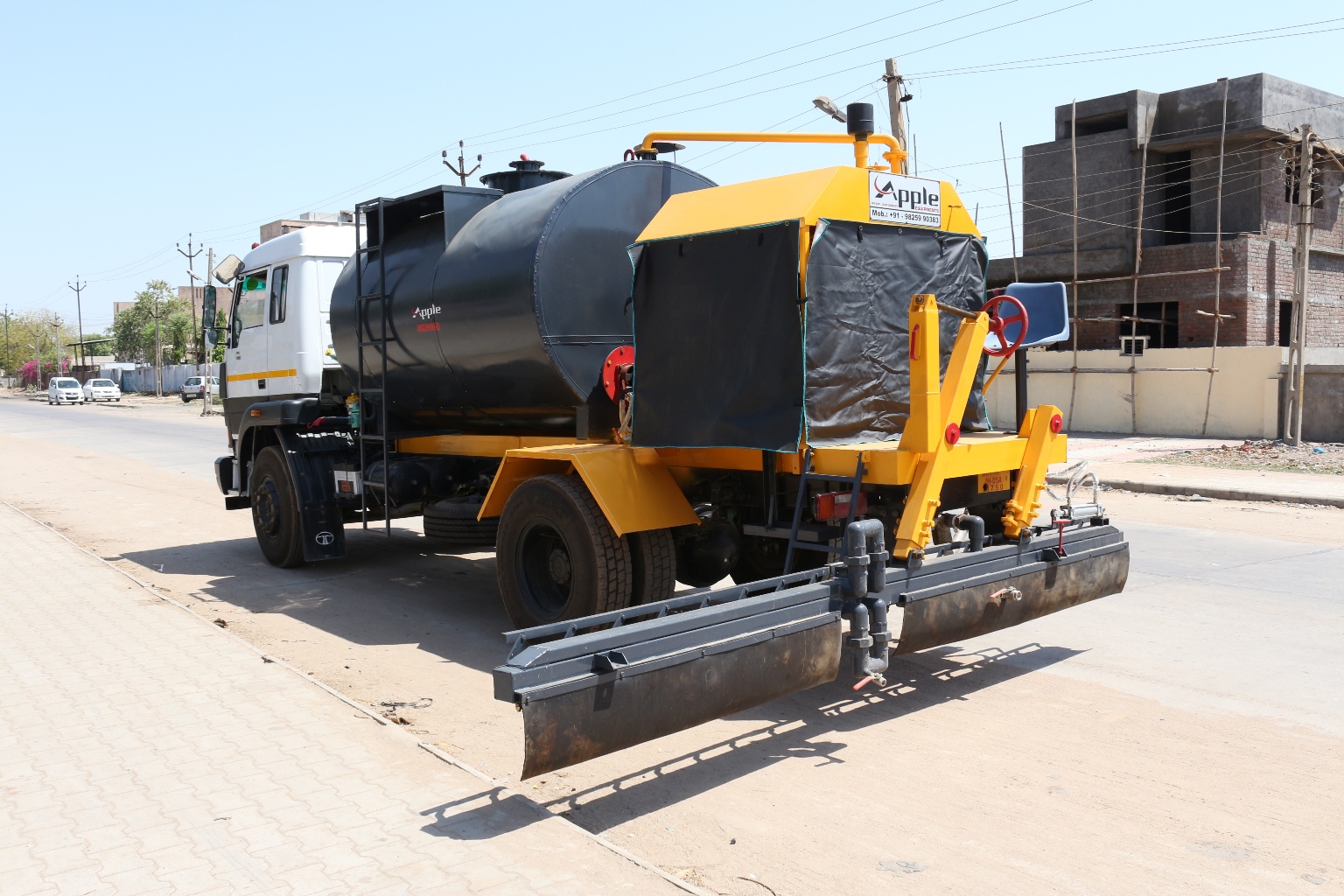

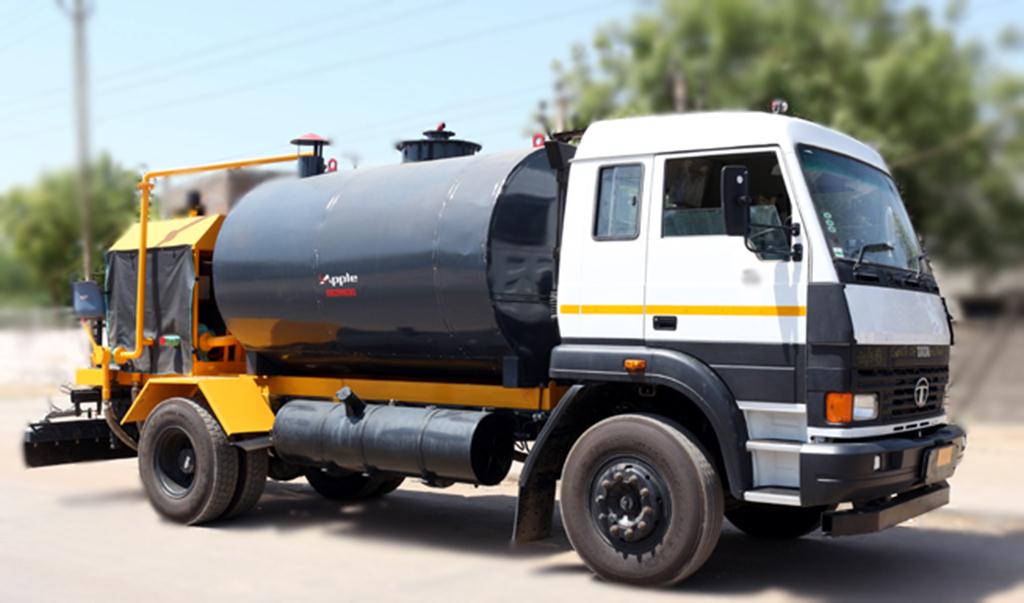

BITUMEN SPRAYER
We offer a wide range of bitumen sprayer by is able to meet the varying needs of customers. Bitumen Sprayer Bitumen Pump 2" * 2" Size positive displacement gear pump with output 350 Liters/Min. (mAX). Air Compressor Make - ELGI 2 CYL, 3 H.P. working pressure 9 kg./ cm 2 13.25m 3 Capacity 360 LPM. 550 R.P.M. Driving unit Krilosker / HTC vertical air cooled diesel engine. Bitumen Spraying Pressure 0 to 6 Kg. / cm 2 Operator Platform Technometer. Slow Speed 0.5 Meter / Min. Temperature Gauge 0 - 250 C at front to tank Spray Bar
| Model | ATM - 3000 | ATM - 4000 | ATM - 6000 | ATM - 7000 |
|---|---|---|---|---|
| Lenght | 2100 mm | 2400 mm | 3100 mm | 3300 mm |
| Widht | 1800 mm | 1800 mm | 1900 mm | 1900 mm |
| Height | 1500 mm | 1500 mm | 1550 mm | 1650 mm |
| Capacity | 3000 Ltrs | 4000 Ltrs | 6000 Ltrs | 7000 Ltrs |
| Man Holder | 600 mm | 600 mm | 600 mm | 600 mm |
| Insulation | 50 mm | 50 mm | 50 mm | 50 mm |
| Fual Consumption of Burner |
20 Ltrs./Hr. | 20 Ltrs./Hr. | 20 Ltrs./Hr. | 20 Ltrs./Hr. |
| Burner | Compressed Air Type | Compressed Air Type | Compressed Air Type | Compressed Air Type |
| Burner Fuel Tank | 50 Ltrs. | 50 Ltrs. | 50 Ltrs. | 50 Ltrs. |
| Mounting | Ashok Leyland or Tata | Ashok Leyland or Tata | Ashok Leyland or Tata | Ashok Leyland or Tata |
| Bitumen | Rectangular | Rectangular | Rectangular | Rectangular |
| Tank Shape | Ovel Shape | Ovel Shape | Ovel Shape | Ovel Shape |
Product Specification
Bitmen Pump : 2" * 2" Size positive displacement gear pump with output 350 Liters/Min. (Max).
Air Compressor : Make - ELGI 2 CYL, 3 H.P. working pressure 9 Kg./cm2 13.25m3 Capacity 360 LPM. 550 R.P.M.
Driving Unit : Krilosker / HTC Vertical air Cooled diesel engine.
Bitumen Spraying Pressure : 0 to 6 kg./cm2
Operator Platform : Technometer: Slow Speed 0.5 Meter/Min.
Temperature Gauge : 0 - 250 C at front of rank
